Pharma Insulin Cartridge Filling Machine

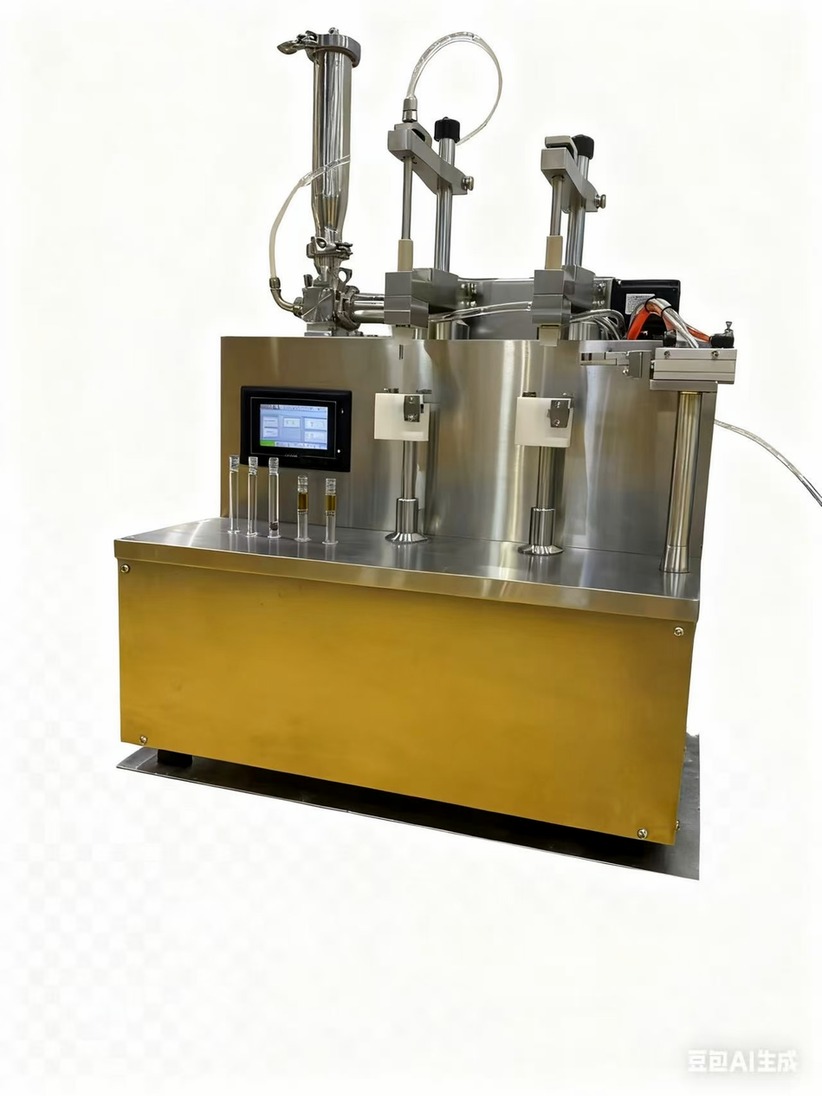

Small Pharma Cartridge Filling & Stoppering Machine   For 1-3ml glass cartridge or Prefilled syringe Get Quotation

1. Using manual insertion and removal of glass cartridges (or syringes) (1 pc per  time);
2. The equipment is divided into two separate workstations for filling and plugging;
3. Filling: put the pre-sterilized cartridge (or syringe) into the fixed tank manually, and use the photoelectric detector to detect whether the cartridge (or syringe) is present. When filling, first vacuumize, and then keep the vacuum filling needle inserted into the cartridge (or syringe) while filling and rising (driven by a set of servo motors), and use the ceramic rotary valve plunger pump dedicated to gel filling.
4. Plugging: The filled cartridge (or syringe) is manually put into the fixed seat of the plugging station, and sent the rubber stopper to the stopper feeder after being sorted by the vibrating plate. The stopper feeder automatically sends one rubber stopper below the stopper rod. The stopper rod first dips down to take out the rubber stopper, and then the syringe returns to the stopper rod and the sealing unit to press down and seal the syringe. After that, vacuum is pumped first and then the vacuum stopper rod is kept pressed down to press the rubber stopper into the cartridge (or syringe), and the vacuum is sucked to the gel liquid level to finally complete the plugging action
5. The finished product is manually taken out and then placed into a new cartridge (or syringe) to repeat the above operation.

Applicable specifications: 1ml-5ml pre-disinfected syringe (consistent  with the user's sample, requiring mold replacement to achieve)
Filling volume: 0.5-5ml
Speed: about 300-600 pieces/hour (depending on the filling volume, gel fluidity and manual speed)
Filling accuracy:  Filling volume above 1ml:  ± 1% - ± 1.5% (filling gel with good fluidity)；
± 2% - ± 3% (filling gel without fluidity)
Electrical  power:3kw,380v,50Hz
Net weight:about 85KG
Dimensions: about 800 * 546 * 680 (mm) for the main body
