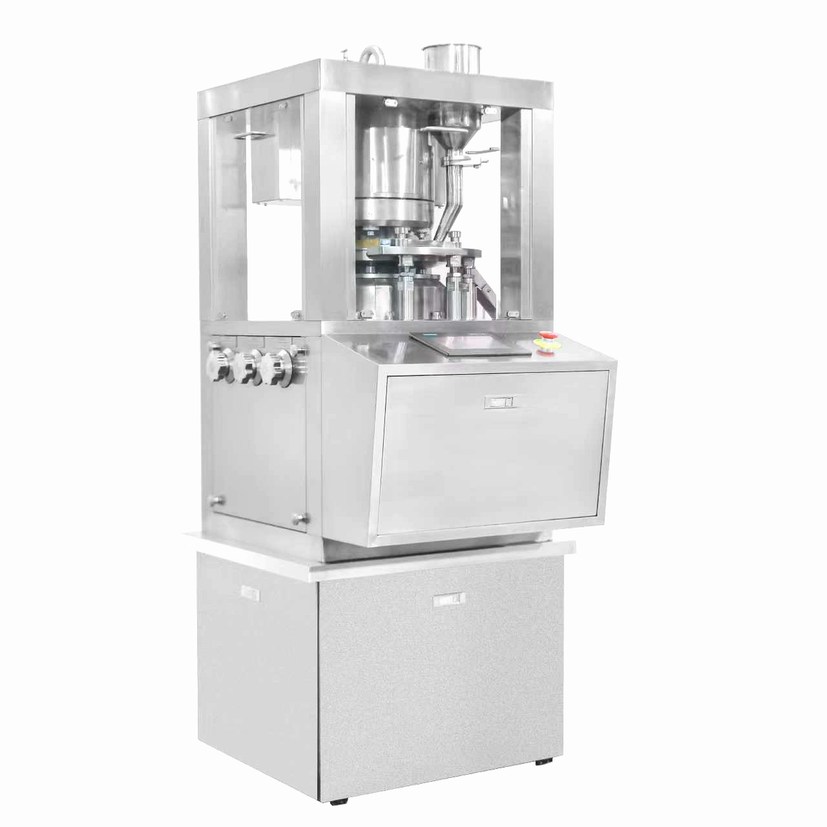

Tablet Press Machine
 | Pill Tablet Press Machinesmall output tablet press machine mainly suitable for use in R&D laboratories. |
Model | ZPY-8 | ZPY-10 | ZPY-16 |
No.of Stations | 8 | 10 | 16 |
Tooling Standard | D/B | D/B | BB |
Max Production Capacity(pcs/h) | 14400 | 18000 | 28800 |
Max Turret Speed（r/min） | 5-30 | ||
Max Pre-pressure(KN) | 10 | ||
Max Main Pressure(KN) | 80 | ||
Max Filling Depth(mm) | 20 | ||
Max Tablet Thickness(mm) | 0.5～8 | ||
Msx Tablet Diameter(mm) | Ф25 | Ф25 | Ф18 |
Motor Power(KW) | 2.2KW/380V，50Hz，Three Phase Five Wires | ||
Overall Size(mm) | 950*950*1870mm | ||
Machine Weight(kg) | 850 | ||
